ALLWINNER TVBOX
X96 LITE ALLWINNER H626
X96 LITE Smart TV Box – Allwinner H626 4K Google TV Powered by Allwinner H626. Enjoy smooth 4K Ultra HD streaming, vibrant HDR visuals, and intuitive Google TV voice control in one compact device.
The X96 LITE is a compact 4K Smart TV Box driven by the Allwinner H626 processor and Google TV OS. It features 4K@60fps streaming, dual-band Wi-Fi, Bluetooth 5.0, and a smart voice remote with Google Assistant for seamless home entertainment.
Product Model | X96 LITE | Project Status | M.P | |
A-media ID/Mainboard model | | |||
Basic parameters | ||||
CPU | Chipset | Allwinner H626 | ||
Architecture | Quad core ARM Cortex A55 | |||
GPU | Chipset | Mali G310 | ||
RAM | Capacity | 2GB (4GB Optional) | ||
ROM | Capacity | 16GB (32/64GB Optional) | ||
External storage | USB Storage Devices | Supported | ||
Software | ||||
Operating system | OS Version | Android 14 | ||
Language | Multi-Language | |||
Multimedia | Video | Video Decoder: | ||
AV1, H.265 MP, VP9, AVS2, supporting up to 4K@60fps | ||||
H.264 BL/MP/HP, supporting up to 4K@30fps | ||||
H.263 BP, MPEG-1/2/4, AVS/AVS+, VP8, XVID, supporting up to 1080P@60fps | ||||
Video encoder: | ||||
H.264, supporting up to 4K@25fps | ||||
Image encoder & decoder： | ||||
JPEG encoder up to 4K@15fps | ||||
JPEG decoder up to 1080P@60fps | ||||
Video Enhance Processor (VEP)： | ||||
Supports motion adaptive de-interlace | ||||
Supports 3D temporal noise reduction | ||||
Supports Film Mode Detetion with Video-On-Film Detection | ||||
Supports horizontal motion compensate de-interlace for subtitle stabilization | ||||
Video Output | HDMI : Up to 4K@60fps | |||
CVBS ： Up to 720x576 in PAL format Up to 720x480 in NTSC format | ||||
Audio | | |||
Image | HD JPEG、BMP、GIF、PNG、TIF | |||
Network service | ||||
Wi-Fi | Type | IEEE802. a/b/g/n/ac/ax (optional) | ||
Frequency | 2.4GHZ ~ 5.8GHZ | |||
Antenna Type | Inside antennas | |||
Bluetooth | Bluetooth | BT5.0+ | ||

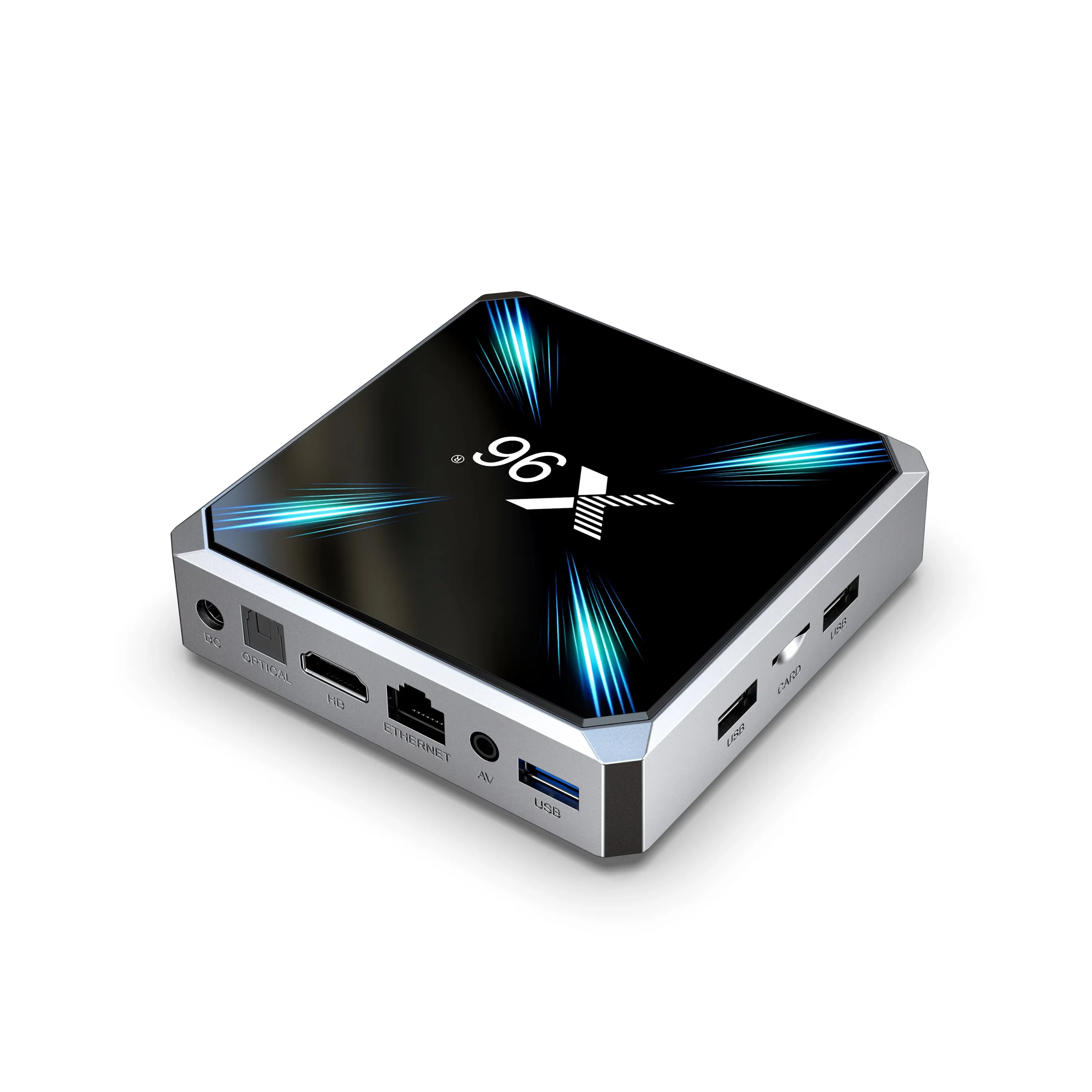

Interface | ||||
Charge | DC connector | DC 5V- 2A | ||
Video Output interface | HDMI | 1* 4K 2K Output, HDMI 2.1（TMDS） | ||
CVBS | Support PAL/NTSC | |||
Optical | SPDIF | 1 * SPDIF OUT | ||
Ethernet | Ethernet | 1*Default 1000M( optional 100M) | ||
TF Card | External memory | 1* TF Card | ||
USB port | USB Host | 1 * USB 3.0，2 * USB 2.0 | ||
Upgrade | Button | Update | ||
Others | RTC | Optional | ||

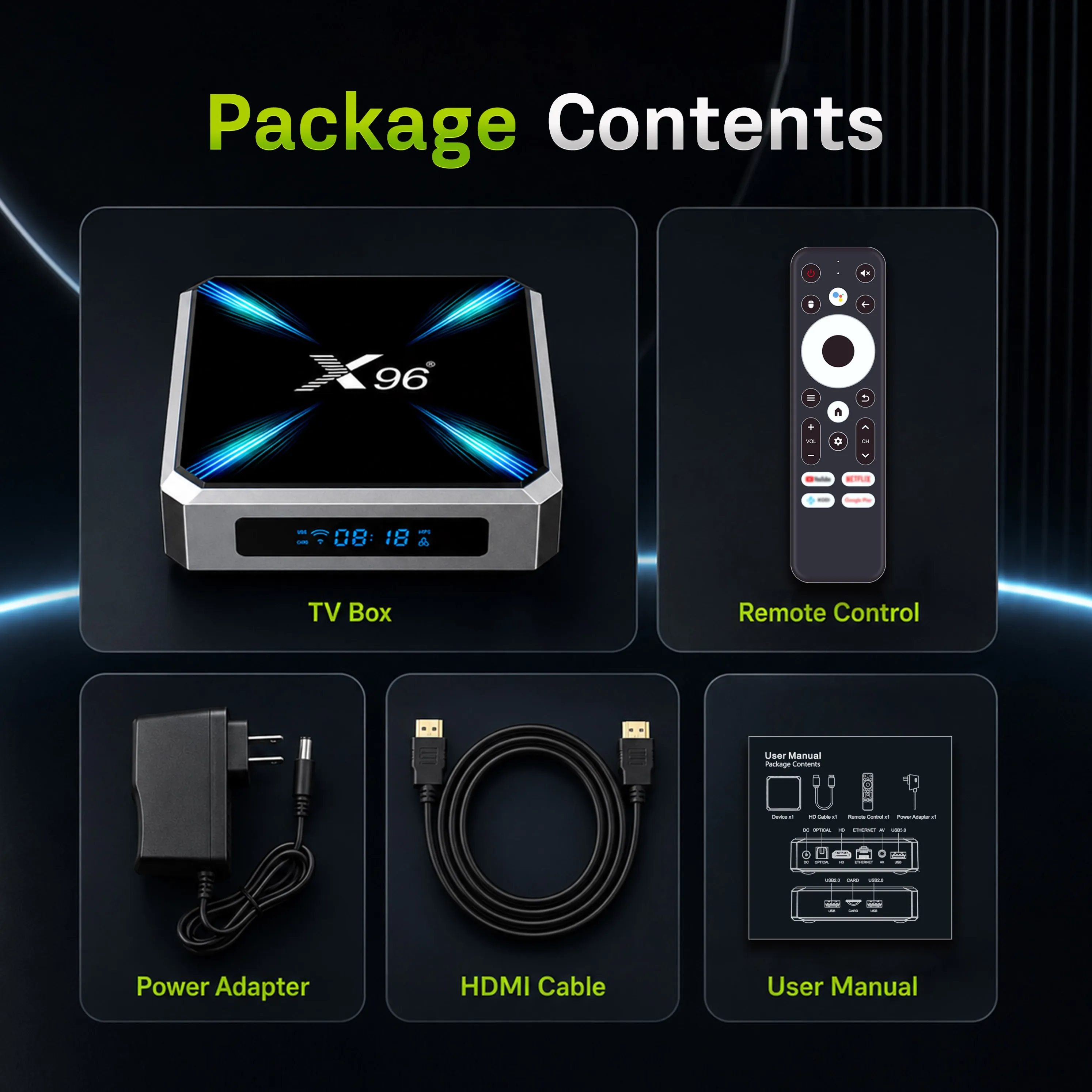

Package contents | | Shipping Info | | |
User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm） | |
Remote control | *1 | Qty Per Carton(pcs) | 20pcs | |
HDMI external cable | *1 | Gift Box.G.W(gs) | | |
Power adapter | *1 | Export carton (G.W.)(kgs) | | |
