X98H PRO Android TV Box – Allwinner H618, Android 12.0, 4K, WiFi 6

The X98H PRO is a 4K Android TV box powered by the Allwinner H618 Quad-Core Cortex-A53 processor and running Android 12.0. It supports 4K at 60fps, HDR10+ processing, Dual-Band Wi-Fi 6, Bluetooth, 100M Ethernet and HD 2.0a output, with a front LED display, 3 USB 2.0 ports, AV output and a TF card slot. It offers 2GB and 4GB RAM options and 16GB, 32GB and 64GB storage options.

Overview

The X98H PRO Android TV Box is a premium, high-performance smart set-top box engineered for markets demanding top-tier connectivity and robust processing power. Powered by the powerful Allwinner H618 Quad-Core processor and running on Android 12 OS, the X98H PRO is a major leap forward, featuring next-generation Wi-Fi 6 (802.11ax) technology, a sleek front LED display, and an unmatched 3x USB ports expansion capability. It is the premier hardware choice for global wholesale distributors, high-end retail brands, and customized IPTV/OTT service providers looking for a competitive edge.

Key Features

  • Advanced Allwinner H618 Chipset: Powered by the Allwinner H618 Quad-Core ARM Cortex-A53 CPU and Mali-G31 MP2 GPU, delivering flawless UI transition, stable performance, and optimized power efficiency.
  • Next-Gen Wi-Fi 6 Technology: Built-in dual-band Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with BT, providing faster transfer speeds, larger capacity, and ultra-low latency streaming even in highly congested network environments.
  • Cinematic 4K @60fps Video Decoding: Supports hardware decoding for H.265 Main10@L5.1 up to 4K@60fps, combined with HDR10+ technology for stunningly vibrant colors and razor-sharp contrast.
  • Ultimate I/O Expansion (3 × USB 2.0): Outperforms standard TV boxes by offering 3x USB 2.0 ports, allowing simultaneous connections of external hard drives, keyboards, mice, or gamepads without needing a hub.

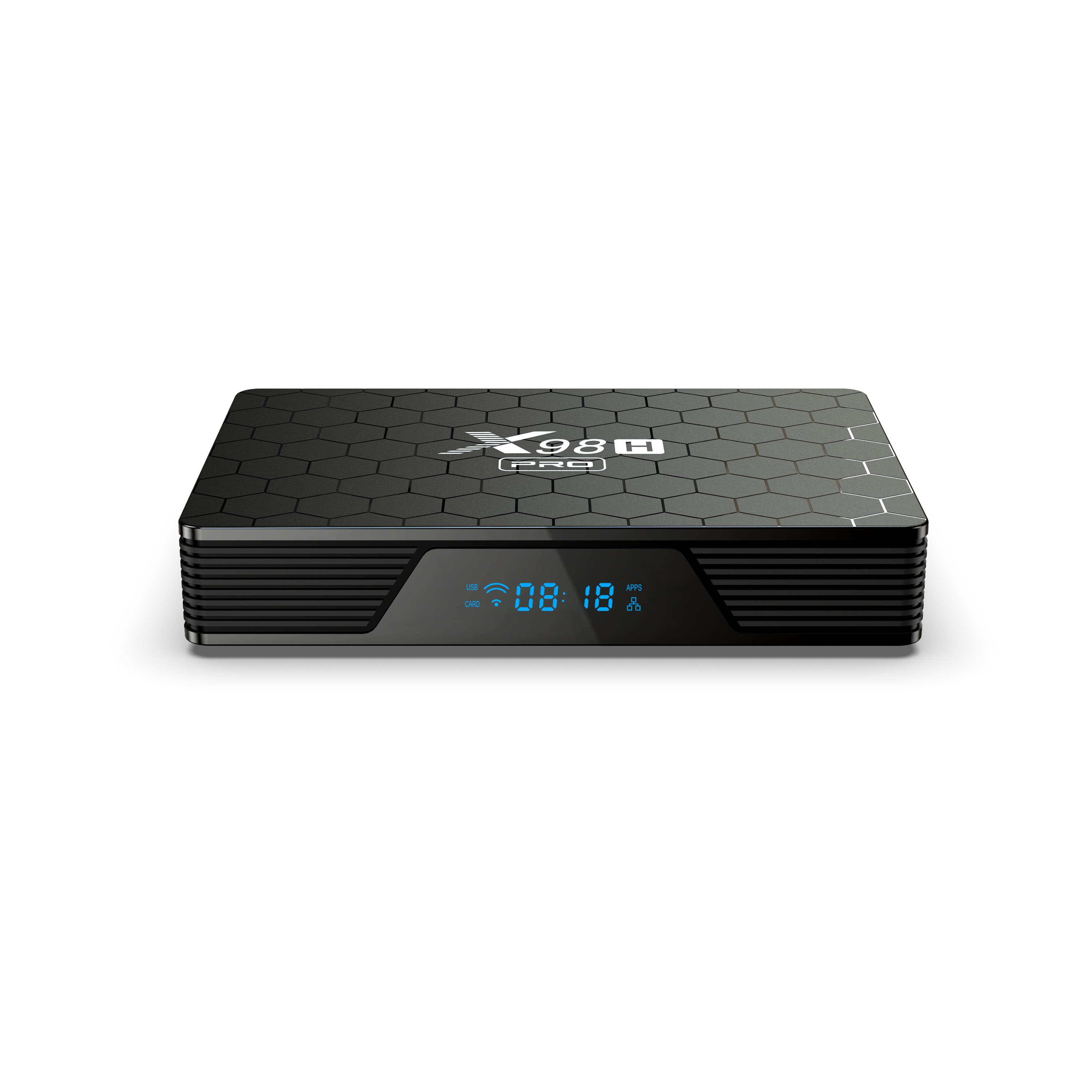

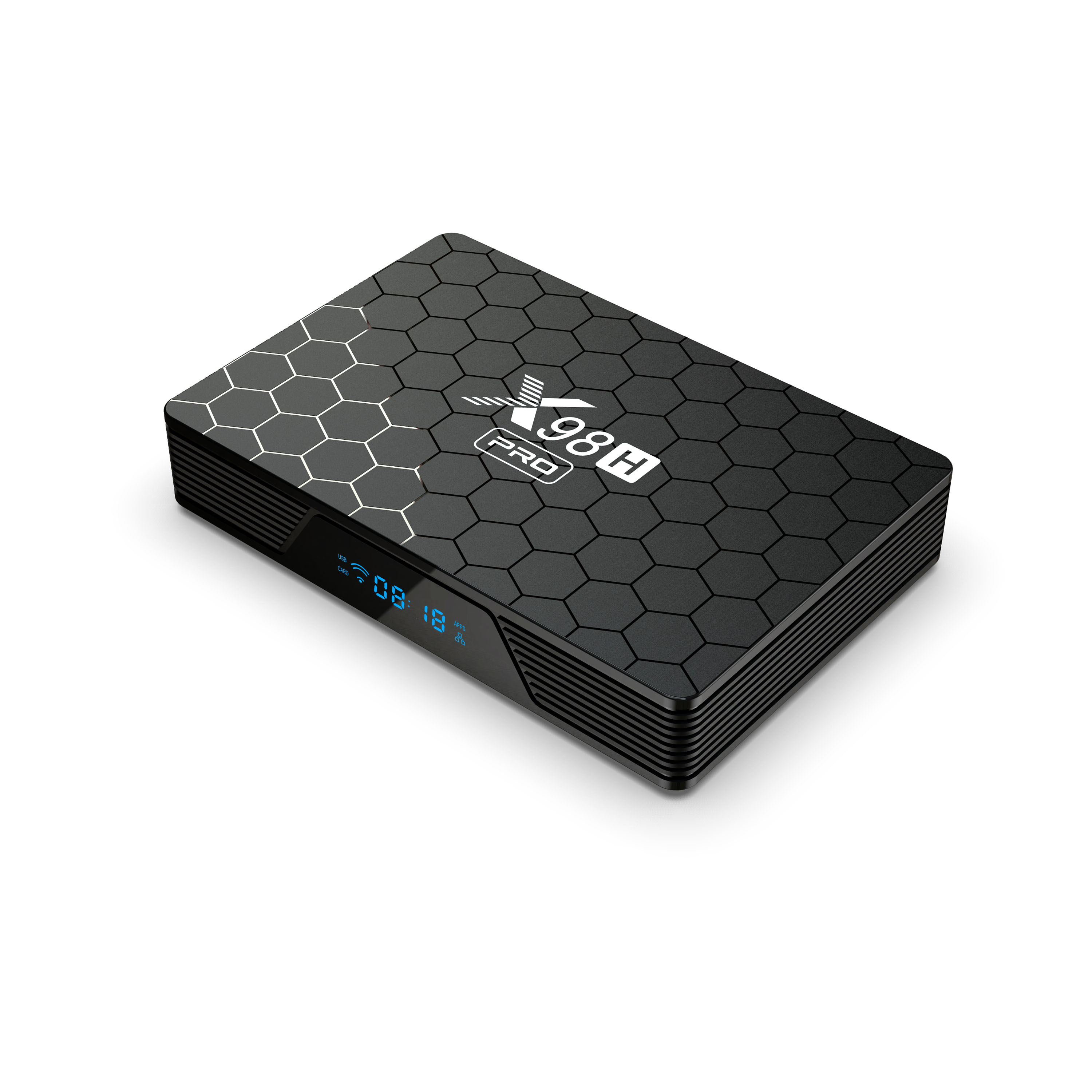

  • Smart Front LED Display: Features a built-in digital LED clock screen on the front panel, instantly showing time, Wi-Fi status, and system boot information for an elegant, high-end user experience.

Target Applications & Markets

  • Premium IPTV / OTT Operator Supply: The absolute best hardware choice for streaming service deployment requiring heavy bandwidth management via Wi-Fi 6.
  • High-End Retail & E-Commerce: Ideal for global B2C platforms and regional tech distributors searching for a distinguished product with unique selling points (3 USBs + LED Display).
  • B2B Bulk Customization (OEM/ODM): Perfectly suited for custom boot logos, tailored UI launcher designs, pre-installed enterprise applications, and professional customized vertical gift box packaging.

X98H PRO Smart TV Box Specifications

Category
Specification Details
Model
X98H PRO
OS
Android 12.0
CPU
Allwinner H618 Quad Core ARM Cortex A53
GPU
Mali-G31 MP2 (Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0)
RAM Options
2GB / 4GB DDR3 (High-capacity options for smooth multitasking)
ROM Options
16GB / 32GB / 64GB eMMC
Front Panel
Digital LED Display (Supports time, Wi-Fi status, and system indicators)
Video Resolution
Up to 4K @ 60fps Ultra HD Output with HDR10+
Video Decoder
H.265 Main10@L5.1 up to 4K@60fps, VP9 Profile 2 up to 4K@60fps, H.264 BP/MP/HP@L4.2 up to 4K@30fps
Audio Format
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Wi-Fi (Next-Gen)
Wi-Fi 6 (802.11ax) Dual-Band 2.4GHz + 5G Wi-Fi
Bluetooth
Built-in Bluetooth (Supports BT remotes, speakers, and gamepads)
Ethernet
Standard RJ-45 Jack (10/100M LAN)
HD Interface
1 x HD 2.0a Output up to 4K @ 60fps
USB Ports (Premium)
3 x USB 2.0 (Supports USB flash drives, mouse, keyboard, and external HDDs)
AV Port
480i/576i standard definition output
TF Card Slot
Supports Micro SD / TF card
Power Supply
DC 5V/2A
