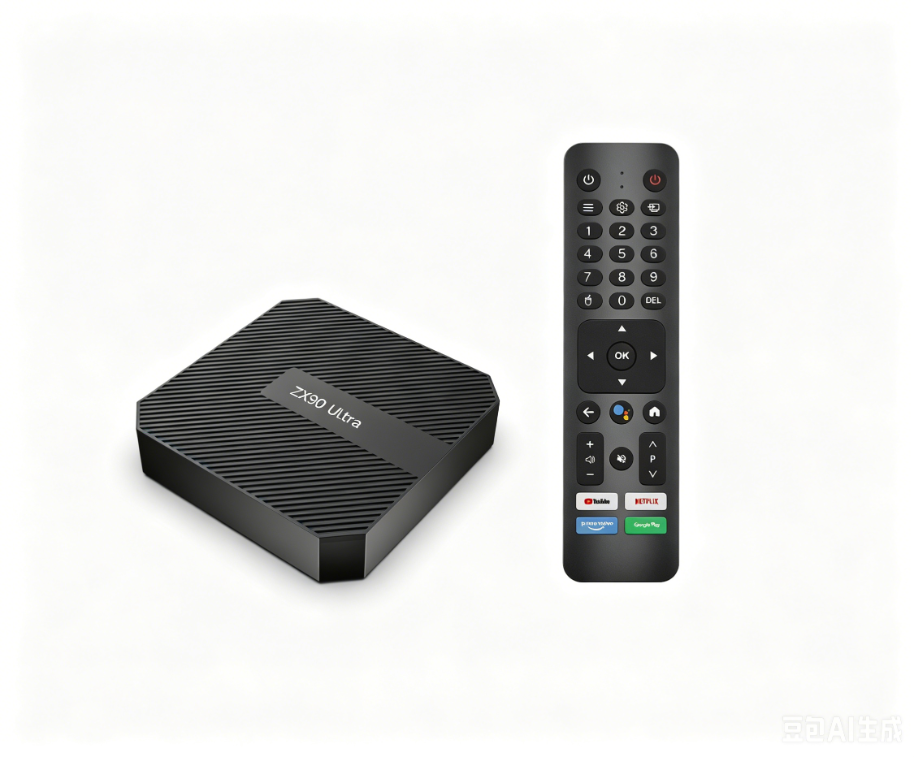

ZX90 Ultra H313 Android TV Box – Allwinner H313, Android 10.0, 4K, WiFi

The ZX90 Ultra is a 4K Android TV box powered by the Allwinner H313 quad-core ARM Cortex-A53 processor with Mali-G31 graphics, 1GB or 2GB DDR3 RAM, and 8GB or 16GB eMMC storage. It runs Android 10.0 and outputs 4K at 60fps over HD 2.0a, with 2.4GHz WiFi, 10/100M Ethernet, and a smart voice remote with Netflix and YouTube shortcuts. Its premium anti-slip diagonal textured enclosure holds 2 USB 2.0 ports and a TF card slot for up to 64GB.




Overview

ZX90 Ultra 4K Smart TV Box

The ZX90 Ultra is a 4K Android TV box powered by the Allwinner H313 quad-core ARM Cortex-A53 processor with Mali-G31 graphics. It runs Android 10.0 with 1GB or 2GB DDR3 RAM and 8GB or 16GB eMMC storage, and it decodes 4K video at 60fps for smooth streaming on a TV.

Key Features

  • Processor: Allwinner H313 Quad-Core CPU
  • OS: Android 10
  • Memory Options: 1GB / 2GB RAM
  • Storage Options: 8GB / 16GB ROM
  • Resolution: 4K Ultra HD Hardware Decoding
  • Remote: Smart Voice Remote with Netflix & YouTube Shortcuts
  • Design: Premium Anti-Slip Diagonal Textured Enclosure

Target Applications

Use the ZX90 Ultra at home to stream 4K video, watch online content, and run thousands of apps on Android 10.0. Connect over 2.4GHz WiFi or 10/100M Ethernet, expand storage with a TF card up to 64GB, and control it with the smart voice remote.
ZX90 Ultra Smart TV Box Specifications
Category
Specification Details
Model
ZX90 Ultra
OS
Android 10.0 (updates depend on firmware version)
CPU
Allwinner H313 Quad Core ARM Cortex A53
GPU
Mali-G31 OpenGL ES3.2
RAM Options
1 GB / 2 GB DDR3
ROM Options
8 GB / 16 GB eMMC
Video Resolution
4K @ 60 fps, 1080p @ 60 fps
Video Decoder
H.265 Main10 @ L5.1 up to 4K @ 60 fps, VP9 Profile 2 up to 4K @ 30 fps, H.264 BP/MP/HP @ L4.2 up to 4K @ 30 fps
Audio Format
Supports MP3, AAC, WMA, RM, FLAC, OGG, with programmable 7.1/5.1 down-mixing
Wi-Fi
2.4 GHz IEEE 802.11 b/g/n
Ethernet
RJ-45 Jack (10/100M LAN)
HD Output
HD 2.0a up to 4K output
USB Ports
2 × USB 2.0 (Supports USB disk and USB HDD)
AV Port
480i/576i standard definition output
TF Card Slot
Supports Micro SD / TF card (up to 64 GB)
Power Supply
DC 5V / 2A
Indicators
Power ON: Blue; Standby: Red

Frequently asked questions

What RAM and storage does the ZX90 Ultra offer?

1GB or 2GB DDR3 RAM with 8GB or 16GB eMMC storage.

What video does the ZX90 Ultra support?

H.265 Main10 decoding up to 4K at 60fps, VP9 up to 4K at 30fps and H.264 up to 4K at 30fps, with HD 2.0a output up to 4K.

Does the ZX90 Ultra come with a voice remote?

Yes. A smart voice remote is included.

What ports does the ZX90 Ultra have?

2 USB 2.0 ports, an AV port, a TF/Micro SD card slot up to 64GB, DC 5V/2A power and 10/100Mbps Ethernet.

What is the minimum order quantity?

500 pieces for standard orders, with a lead time of 15 days.
